¨‹SMB SERIES(SURFACE MOUNT BEADS)

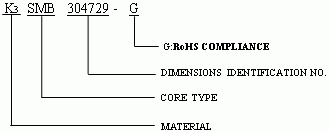

       1.ORDERING CODE

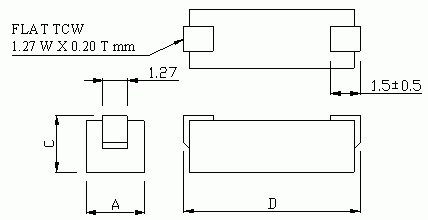

       2.SHAPES

¡¡¡¡


       3.DIMENSIONS


Uni:tmm

NO.

FERRICO PART NO.

A

B

C

IMPEDANCE(¦¸)
TYP.

25MHz

100MHz
1
3.0¡À0.20
4.7¡À0.40
2.9¡À0.20
23
31
2
3.0¡À0.20
9.0¡À0.50
2.9¡À0.20
58
77
3
4.8¡À0.20
8.0¡À0.50
3.1¡À0.20
61
91
REMARK :
 1.TAPPING PACKAGE IS AVAILABLE
2.OTHER SIZE ARE AVAILABLE UPON REQUEST
