¨‹RID SERIES(BALUN & WIDE BAND CHOKE CORES)

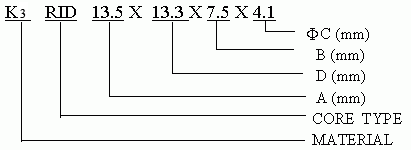

       1.ORDERING CODE

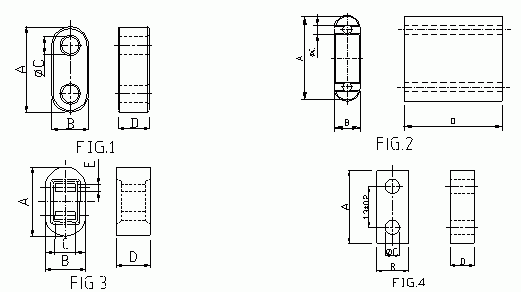

       2.SHAPES


       3.DIMENSIONS

NO.

FERRICO
PART NO.

FIG

A

D

B

¦µC

1
__RID 2.74X1.27X1.52X0.56
1
2.74¡À 0.2
1.27¡À0.2
1.52¡À0.2
0.56¡À0.1
2
__RID 3.0X1.85X1.5X0.6
4
3.0¡À 0.2
1.85¡À0.2
1.5¡À 0.2
0.6¡À0.1
3
__RID 3.5X2.0X2.0X0.9
1
3.5¡À0.2
2.0¡À 0.2
2.0¡À0.2
0.9¡À0.15
4
__RID 4.7X3.0X2.25X1.0
1
4.7¡À0.3
3.0¡À 0.2
2.25¡À0.2
1.0¡À0.15
5
__RID 5.0X2.8X2.0X1.1
1
5.0¡À0.2
2.8¡À0.2
2.0¡À 0.2
1.1¡À0.15
6
__RID 5.0X3.0X2.0X1.2
1
5.0¡À0.3
3.0¡À0.3
2.0¡À 0.2
1.2¡À0.15
7
__RID 5.0X2.0X3.0X1.2
1
5.0¡À0.3
2.0¡À0.3
3.0¡À 0.2
1.2¡À0.15
8
__RID 5.2X2.0X2.5X1.3
1
5.2¡À0.3
2.0¡À0.3
2.5¡À 0.2
1.3¡À0.15
9
__RID 6.3X5.0X3.0X1.2
1
6.3¡À0.3
5.0¡À0.2
3.0¡À 0.2
1.2¡À0.15
10
__RID 6.3X4.0X3.0X1.0
1
6.3¡À0.3
4.0¡À0.3
3.0¡À 0.3
1.0¡À0.15
11
__RID 6.35X3.18X3.5X1.7
1
6.35¡À0.35
3.18¡À0.2
3.5¡À 0.2
1.7¡À0.15
12
__RID 6.5X2.0X3.0X1.1
1
6.5¡À0.3
2.0¡À0.2
3.0¡À 0.3
1.1¡À0.15
13
__RID 7.0X2.5X4.1X1.8
1
7.0¡À 0.3
2.5¡À0.3
4.1¡À 0.2
1.8¡À0.10
14
__RID 7.1X6.2X4.2X2.2
1
7.1¡À 0.3
6.2¡À0.3
4.2¡À 0.25
2.2¡À
0.1
0.3
15
__RID 7.1X6.2X4.2X2.2
3
7.1¡À 0.4
6.2¡À0.3
4.2¡À 0.25
2.2¡À 0.2
16
__RID 7.5X5.5X2.3X0.9
2
7.5¡À 0.2
5.5¡À0.3
2.3¡À 0.2
0.9¡À 0.15
17
__RID 8.0X5.0X2.5X0.8
2
8.0¡À 0.3
5.0¡À0.3
2.5¡À0.3
0.8¡À 0.15
18
__RID 8.1X7.4X3.5X1.8
4
8.1¡À 0.4
7.4¡À 0.4
3.5¡À 0.2
1.8¡À 0.2
19
__RID 12.0X6.5X6.5X3.8
1
12.0¡À 0.4
6.5¡À0.3
6.5¡À0.3
3.8¡À 0.25
20
__RID 13.5X13.3X7.5X4.1
1
13.5¡À 0.4
13.3¡À 0.4
7.5¡À0.4
4.1¡À 0.25

CLICK HERE TO RHH/R3H/R4H/R6H
