¨‹NFR SERIES(EMI SUPPRESSION CORES WITH PLASTIC CASE)

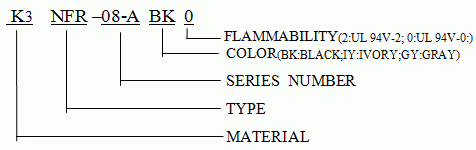

       1.ORDERING CODE

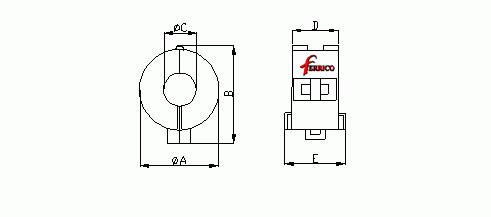

       2.SHAPES


       3.DIMENSIONS

Unit:mm

NO.
FERRICO
PART NO.
¦µA
B
¦µC
D
E
CABLE DIAMETER
IMPEDANCE(¦¸)TYP.
25 MHz
100 MHz
1
19.5¡À1.0
24.0¡À1.0
8.0¡À1.0
17.0¡À1.0
22.5¡À1.0
MAX.¦µ 7.5
57
117
2
19.6¡À1.0
24.0¡À1.0
8.0¡À1.0
19.6¡À1.0
25.6¡À1.0
MAX.¦µ 7.5
72
122
3
24.0¡À1.0
28.0¡À1.0
10.0¡À1.0
13.0¡À1.0
19.0¡À1.0
MAX.¦µ9.5
46
92
4
28.0¡À1.0
32.0¡À1.0
12.0¡À1.0
16.5¡À1.0
22.5¡À1.0
MAX.¦µ11.0
67
123
5
30.0¡À1.0
34.0¡À1.0
14.0¡À1.0
14.5¡À1.0
21.0¡À1.0
MAX.¦µ13.5
44
85

REMARK: 1.MATERIAL IS AVAILABLE UPON REQUEST
                  2.OTHER SIZE ARE AVAILABLE UPON REQUESET                                                  3.CASE COLOR (BLACK, IVORY, GRAY) IS AVAILABLE UPON REQUEST
