¨‹DR(D31) SERIES(COIL FORM)

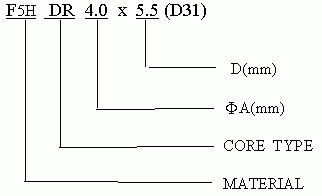

       1.ORDERING CODE

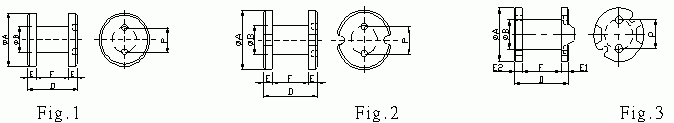

       2.SHAPES


       3.DIMENSIONS
Unit:mm
NO.
FERRICO
PART NO.
FIG.
¦µA
¦µB
D
E/E2
F
P
1
 _DR 4.0X5.5(D31)
1
4.0¡À0.15
2.0¡À0.15
5.5¡À0.30
1.6¡À0.15
2.3¡À0.15
2.0
2
 _DR 4.5X7.0(S)(D31)
3
4.5¡À0.08
2.0¡À0.10
7.0¡À0.15
1.4¡À0.1/1.0¡À0.1
3.9¡À0.15
2.5
3
 _DR 5.0X4.6 (D31)
1
5.0¡À0.15
2.5¡À0.15
4.6¡À0.15
1.3REF.
2.0¡À0.15
2.5
4
 _DR 6.0X8.0 (D31)
1
6.0¡À0.20
3.0¡À0.15
8.0¡À0.30
2.0¡À0.15
4.0¡À0.15
3.0
5
 _DR 6.0X8.0(S) (D31)
2
6.0¡À0.20
3.0¡À0.15
8.0¡À0.30
1.8REF.
4.4¡À0.20
3.6
6
 _DR 7.8X10.0(S)(D31)
3
7.8¡À0.20
3.0¡À0.20
10.0¡À 0
0.3
2.0/2.0REF.
5.0¡À0.20
5.0
7
 _DR 8.0X8.0(S) (D31)
2
8.0¡À0.15
3.0¡À0.15
8.0¡À0.30
2.0¡À0.15
4.0¡À0.15
5.0
8
 _DR 8.0X9.0 (D31)
1
8.0¡À0.15
3.5¡À0.15
9.0¡À0.30
2.0¡À0.15
5.0¡À0.15
5.0
9
 _DR 8.0X10.1(S) (D31)
3
8.0¡À 0.1
0.2
4.45¡À0.15
10.1¡À0.20
1.8¡À0.15/1.3¡À0.15
6.0¡À0.15
5.0
10
 _DR 8.0X12.0(D31)
1
8.0¡À0.20
4.1¡À0.15
12.0¡À0.40
2.5¡À0.15
7.0¡À0.20
5.0
11
 _DR 8.5X9.0(S) (D31)
3
8.5MAX
3.5¡À0.15
9.0MAX
1.2/1.8REF.
4.8MIN
5.0
12
 _DR 9.0X12.0 (D31)
1
9.0¡À0.30
4.0¡À0.20
12.0¡À0.30
2.5¡À0.105
7.0¡À0.20
5.0
13
 _DR 10.0X12.0 (D31)
1
10.0¡À0.30
3.5¡À0.20
12.0¡À0.30
2.35¡À0.105
7.3¡À0.20
5.0
14
 _DR 11.0X10.0(S)(D31)
2
11.0¡À0.30
4.5¡À0.30
10.0¡À0.30
2.0REF.
6.0¡À0.30
5.0
15
 _DR 12.0X15.0(S) (D31)
2
12.0¡À0.30
6.0¡À0.20
15.0¡À0.30
3.0¡À0.15
9.0¡À0.20
7.5
16
 _DR 16.0X10.0(S)(D31)
2
16.0¡À0.30
9.8¡À0.20
10.0¡À0.30
2.25¡À0.15
5.5¡À0.15
9.5
REMARK:OTHER SIZES ARE AVAILABLE UPON REQUEST
