¨‹DR SERIES(DRUM CORES)

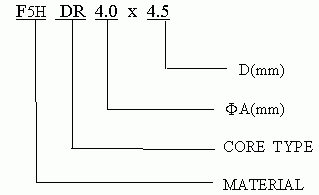

       1.ORDERING CODE

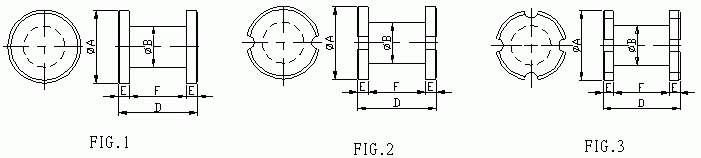

       2.SHAPES




       3.DIMENSIONS
Unit:mm

NO.

FERRICO PART NO.

FIG.

¦µA

¦µB

D

E
F
1
__ DR2.6X0.8
1
2.6¡À0.10
1.0¡À0.07
0.8¡À0.07
0.25¡À0.07
0.3¡À0.07
2
__ DR3.2X0.9
1
3.2¡À0.10
2.0¡À0.10
0.9¡À0.10
0.3¡À0.10
0.3¡À0.10
3
__ DR 4.2X0.8
1
4.2¡À
0
0.20
2.0¡À0.10
0.8¡À0.07
0.275¡À0.07
0.25¡À0.05
4
__ DR 4.3X0.8
1
4.3¡À0.10
2.8¡À0.20
0.8¡À
0
0.10
0.28REF.
0.2¡À0.07
5
__ DR 3.9X3.0(4S)
3
3.9¡À
0.05
0.20
1.5¡À0.15
3.0¡À0.20
0.75REF.
1.5¡À0.10
6
__ DR4.0X3.0
1
4.0¡À
0
0.20
2.0¡À0.15
3.0¡À0.20
0.75REF.
1.5¡À0.10
7
__ DR 4.5X5.8
1
4.5¡À0.15
2.2¡À0.15
5.8¡À0.20
0.9¡À0.10
4.0¡À0.10
8
__ DR 5.3X3.6
1
5.3¡À0.20
2.8¡À0.20
3.6¡À0.20
0.5REF.
2.6¡À0.20
9
__ DR 6.8X4.0(S)
2
6.8¡À0.20
3.0¡À0.15
4.0¡À 0.20
0.85¡À0.10
2.3¡À0.15
10
__ DR 8.0X4.0(S)
2
8.0¡À0.20
3.6¡À0.20
4.0¡À 0.20
0.95¡À0.15
2.1¡À0.15
11
__ DR 8.0X10.0
1
8.0¡À0.20
3.0¡À0.15
10.0¡À 0.20
1.5¡À0.15
7.0¡À0.20
12
 __ DR 8.7X4.2
1
8.7¡À0.20
3.3¡À0.15
4.2¡À 0.20
0.78¡À0.15
2.65¡À0.20
13
 __ DR 9.0X12.0
1
9.0¡À0.30
4.5¡À0.20
12.0¡À 0.30
3.2REF.
5.6¡À0.20
14
 __ DR 10.0X11.0(S)
2
10.0¡À0.15
6.1¡À0.20
11.0¡À0.15
2.35¡À0.10
6.3¡À0.15
15
 __ DR 10.0X12.5
1
10.0¡À0.20
4.0¡À0.15
12.5¡À0.30
2.0¡À0.15
8.5¡À0.20
16
 __ DR 12.0X15.0(S)
2
12.0¡À0.30
6.0¡À0.20
15.0¡À0.30
2.1¡À0.20
10.8¡À0.20
17
 __ DR 14.0X15.0(S)
2
14.0¡À0.50
7.0¡À0.20
15.0¡À0.50
2.5REF.
10.0¡À0.25
18
 __ DR 15.0X12.0
1
15.0¡À0.30
4.5¡À0.20
12.0¡À0.30
3.0¡À0.20
6.0¡À0.20
19
 __ DR 15.0X15.0(S)
2
15.0¡À0.20
7.0¡À0.20
15.0¡À0.20
3.0¡À0.20
9.0¡À0.20
REMARK:OTHER SIZES ARE AVAILABLE UPON REQUEST
