NO. |
FERRICO
PART NO. |

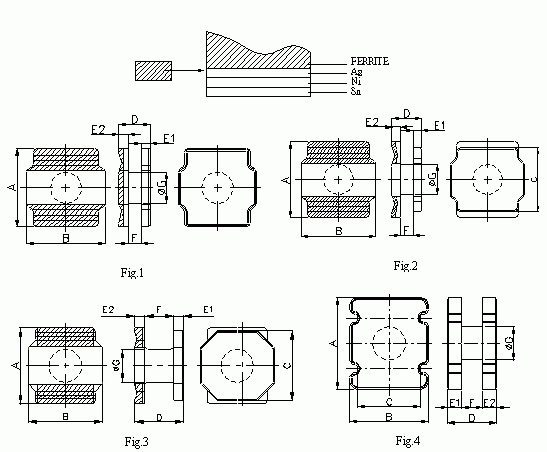

FIG. |
A |
B |
C |
D |
E1 |
F |
E2 |
¦µG |
1 |

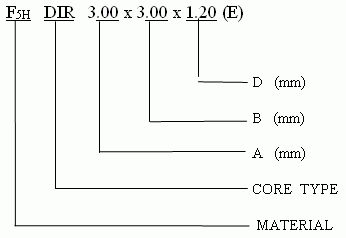

F5H DIR 3.00X3.00X1.20(E) |
1 |
3.0¡À0.08 |
3.0¡À0.08 |
2.5¡À0.08 |
1.2¡À0.08 |
0.3¡À0.05 |
0.5¡À0.05 |
0.4¡À0.05 |
1.2¡À0.08 |
2 |
F5H DIR 3.00X3.00X1.35(E) |
2 |
3.0¡À0.08 |
3.0¡À0.08 |
2.5¡À0.08 |
1.35¡À0.08 |
0.35¡À0.05 |
0.6¡À0.07 |
0.4¡À0.05 |
1.3¡À0.08 |
|
3 |
F5H DIR 4.00X4.00X2.30(E) |
1 |
4.0¡À0.1 |
4.0¡À0.1 |
3.5¡À0.1 |
2.3¡À0.1 |
0.5¡À0.08 |
1.0¡À0.08 |
0.8¡À0.08 |
1.8¡À0.08 |
4 |
F5H DIR 5.00X5.00X2.30(E) |
2 |
5.0¡À0.1 |
5.0¡À0.1 |
4.5¡À0.1 |
2.3¡À0.1 |
0.45¡À0.07 |
1.3¡À0.1 |
0.55¡À0.07 |
2.6¡À0.1 |
5 |
F5H DIR 5.60X5.00X4.70(E) |
1 |
5.6¡À0.2 |
5.0¡À0.15 |
5.0¡À0.15 |
4.7¡À0.15
|
0.9¡À0.10 |
2.5¡À0.15 |
2.3¡À0.10 |
3.0¡À0.15 |
6 |
F5H DIR 6.00X6.00X2.55(E) |
2 |
6.0¡À0.1 |
6.0¡À0.1 |
5.5¡À0.1 |
2.55¡À0.1 |
0.6¡À0.1 |
1.3¡À0.1 |
0.65¡À0.1 |
3.0¡À0.1 |
7 |
F5H DIR 7.00X7.00X2.30(E) |
2 |
7.0¡À0.1 |
7.0¡À0.1 |
6.5¡À0.1 |
2.3¡À0.1 |
0.45¡À0.07 |
1.3¡À0.1 |
0.55¡À0.07 |
4.0¡À0.1 |
8 |
F5H DIR 7.00X7.00X2.55(E) |
2 |
7.0¡À0.1 |
7.0¡À0.1 |
6.5¡À0.1 |
2.55¡À0.1 |
0.6¡À0.1 |
1.3¡À0.1 |
0.65¡À0.1 |
4.0¡À0.1 |
9 |
F5H DIR 8.00X8.00X2.30(E) |
2 |
8.0¡À0.1 |
8.0¡À0.1 |
7.5¡À0.1 |
2.3¡À0.1 |
0.6¡À0.1 |
1.05¡À0.1 |
0.65¡À0.1 |
5.0¡À0.1 |
10 |
F5H DIR 8.00X8.00X2.55(E) |
2 |
8.0¡À0.1 |
8.0¡À0.1 |
7.5¡À0.1 |
2.55¡À0.1 |
0.6¡À0.1 |
1.3¡À0.1 |
0.65¡À0.1 |
5.0¡À0.1 |
11 |
F5H DIR 8.00X8.00X3.70(E) |
1 |
8.0¡À0.1 |
8.0¡À0.1 |
7.5¡À0.1 |
3.7¡À0.1 |
0.7¡À0.1 |
2.0¡À0.1 |
1.0¡À0.1 |
3.5¡À0.1 |
12 |
F5H DIR 8.00X8.00X3.70(E) |
2 |
8.0¡À0.1 |
8.0¡À0.1 |
7.5¡À0.1 |
3.7¡À0.1 |
0.7¡À0.1 |
2.2¡À0.1 |
0.8¡À0.1 |
3.6¡À0.1 |
13 |
F5H DIR 10.00X10.00X2.55(E) |
2 |
10.0¡À0.1 |
10.0¡À0.1 |
9.5¡À0.1 |
2.55¡À0.1 |
0.6¡À0.1 |
1.3¡À0.1 |
0.65¡À0.1 |
6.0¡À0.1 |
14 |
F5H DIR 10.00X10.00X3.70(E) |
2 |
10.0¡À0.1 |
10.0¡À0.1 |
9.5¡À0.1 |
3.7¡À0.1 |
0.8¡À0.1 |
2.0¡À0.1 |
0.9¡À0.1 |
5.5¡À0.1 |
