¨‹DI SERIES(SMD CHIP INDUCTOR CORES)

       1.ORDERING CODE

¡¡¡¡

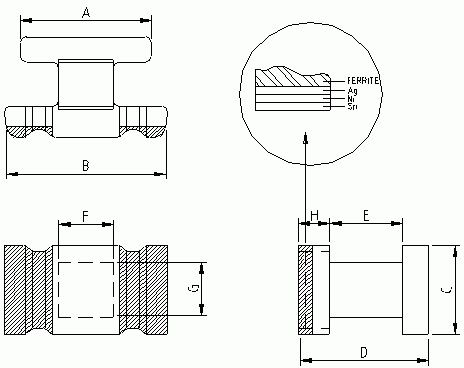

       2.SHAPES

       3.DIMENSIONS
Unit:mm
NO.
FERRICO
PART NO.
FIG.
A
B
C
D
E
F
G
1
__DI 2.0X1.5X1.3
1
1.5¡À0.15
2.0¡À0.15
1.5¡À0.15
1.3¡À0.10
0.4¡À0.10
 0.9¡À0.10 0.9¡À0.10
2
__DI 2.0X1.5X1.4
1
1.5¡À0.15
2.0¡À0.15
1.5¡À0.15
1.4¡À0.15
0.4¡À0.10
 0.9¡À0.10 0.9¡À0.10
3
__DI 2.0X1.5X1.7
1
1.5¡À0.20
2.0¡À0.20
1.5¡À0.20
1.7¡À0.20
0.8¡À0.10
 0.9¡À0.10 0.9¡À0.10
4
 __DI 2.5X2.0X1.8
1
2.0¡À0.15
2.5¡À0.15
2.0¡À0.15
1.8¡À0.15
0.6¡À0.10
 0.9¡À0.10 0.9¡À0.10
5
 __DI 3.2X1.6X1.8
1
2.3¡À0.20
3.2¡À0.30
1.6¡À0.20
1.8¡À0.20
0.9¡À0.10
 1.1¡À0.10 1.1¡À0.10
6
 __DI 3.2X2.5X1.1
1
2.5¡À0.10
3.2¡À0.10
2.5¡À0.10
1.1¡À0.05
0.35¡À0.05
 0.85¡À0.05 0.85¡À0.05
7
 __DI 3.2X2.5X1.55
1
2.5¡À0.20
3.2¡À0.20
2.5¡À0.20
1.55¡À0.15
0.75¡À0.15
 1.1¡À0.10 1.1¡À0.10
8
 __DI 3.2X2.5X1.98
1
2.5¡À0.20
3.2¡À0.30
2.5¡À0.20
1.98¡À0.10
0.85¡À0.10
 1.0¡À0.10 1.0¡À0.10
9
 __DI 3.2X2.5X2.0
1
2.5¡À0.20
3.2¡À0.30
2.5¡À0.20
2.0¡À0.20
0.90¡À0.10
 1.1¡À0.10 1.1¡À0.10
10
 __DI 3.2X2.5X2.05
1
2.5¡À0.10
3.2¡À0.10
2.5¡À0.10
2.05¡À0.10
1.0¡À0.10
 1.25¡À0.08 1.3¡À0.08
11
 __DI 3.2X2.5X2.0X1.8
1
2.5¡À0.10
3.2¡À0.15
2.5¡À0.10
2.0¡À0.05
0.9¡À0.15
 1.1¡À0.10 1.1¡À0.10
12
 __DI 4.5X3.2X2.55
1
3.6¡À0.10
4.5¡À0.10
3.2¡À0.10
2.55¡À0.10
1.2¡À0.10
 1.4¡À0.08 1.5¡À0.08
13
 __DI 4.5X3.2X2.6
1
3.6¡À0.30
4.5¡À0.15
3.2¡À0.20
2.6¡À0.20
1.4¡À0.10
 1.9¡À0.10 1.5¡À0.10
14
 __DI 5.6X5.0X5.0
1
5.0¡À0.20
5.7¡À0.30
5.0¡À0.20
4.7¡À0.20
2.6¡À0.10
 3.0¡À0.10 3.0¡À0.10
REMARK: OTHER SIZES ARE AVAILABLE UPON REQUEST
